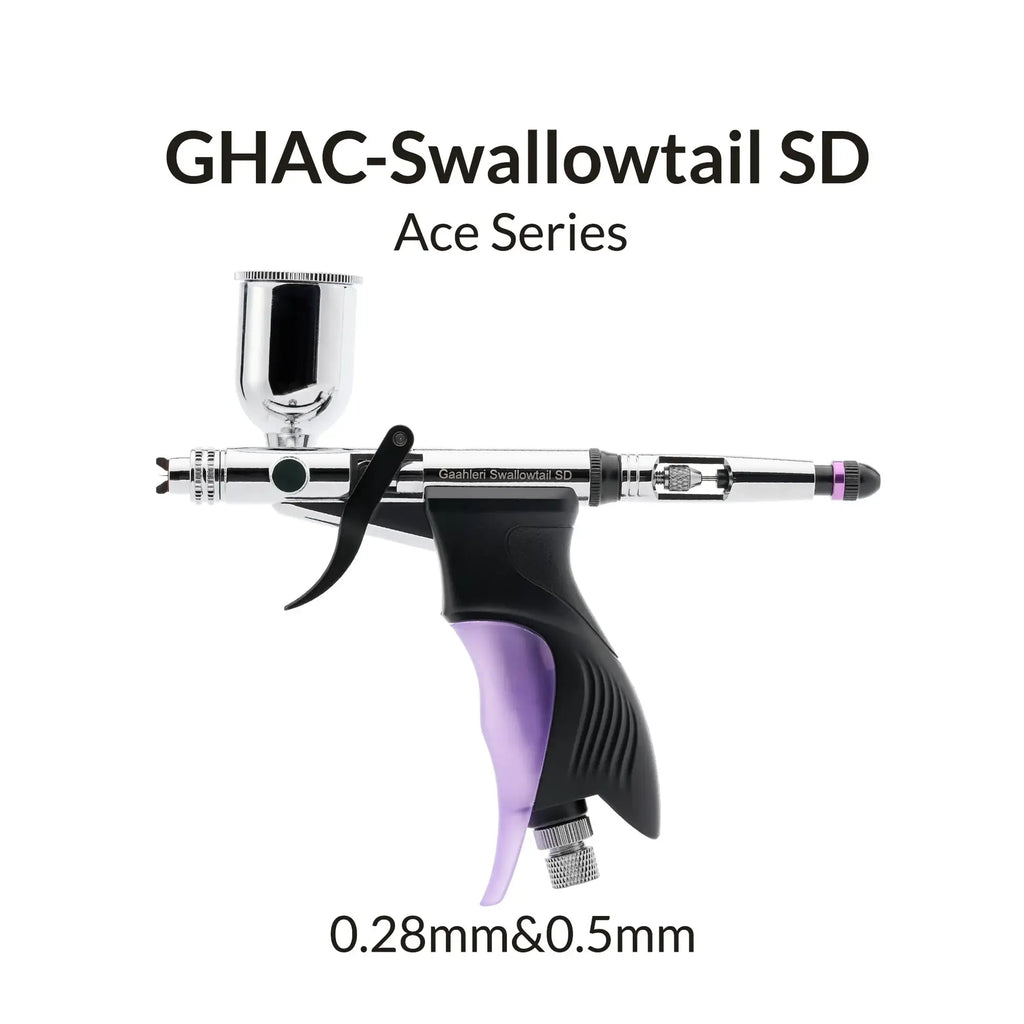

Ace Series GHAC-Swallowtail SD

The Gaahleri Ace Series GHAC-Swallowtail SD is a side-feed airbrush designed for artists who want clear visibility, flexible paint capacity, and smooth performance across detail work and larger coverage. The side-mounted cup keeps the view open for close-up control, while multi-angle cup options help tailor the setup to different projects and spraying styles.

Key Features

Gravity Side-Feed System

The side-mounted cup improves visibility for intricate lines and complex patterns. This layout helps keep the work area clear for close-up precision and detailed spraying.

Siphon Side-Feed System

A larger cup option supports extended sessions and faster color changes. Built with advanced sealing and precision engineering to keep performance consistent. Anodized aluminum lids are designed to improve corrosion resistance and portability.

Customizable, Multi-Angled Attachments

Compatible with side-feed cups ranging from 1/10 oz to 1 oz, allowing the airbrush to be configured for small detail work or higher-volume spraying.

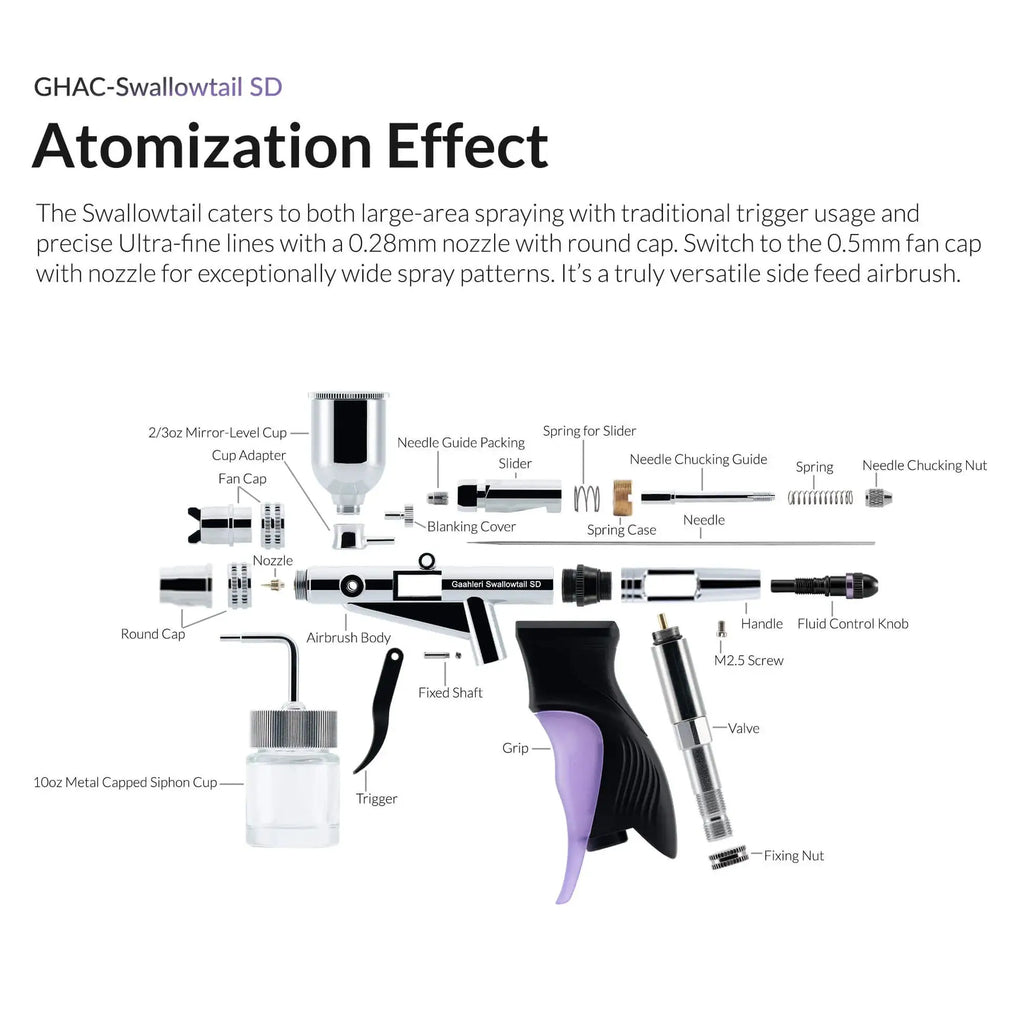

Dual Nozzle Caliber

• 0.28mm needle/nozzle for fine detail, tight lines, and controlled shading
• 0.5mm needle/nozzle for higher flow and broader coverage
• 0.5mm fan cap for faster, smoother large-area spraying

8-MAC System

Built to support fine-line control and consistent atomization through enhanced manufacturing processes and stricter quality standards.

Ace Series High-Toughness Needle

A polished, self-healing needle design is engineered to support smooth paint flow, help reduce clogs, and minimize downtime for more consistent spraying sessions.

Ergonomic Handle

Designed for comfort during longer sessions, with an extended tail that adds stability and extra pinky support for micro-movements and controlled detail work.

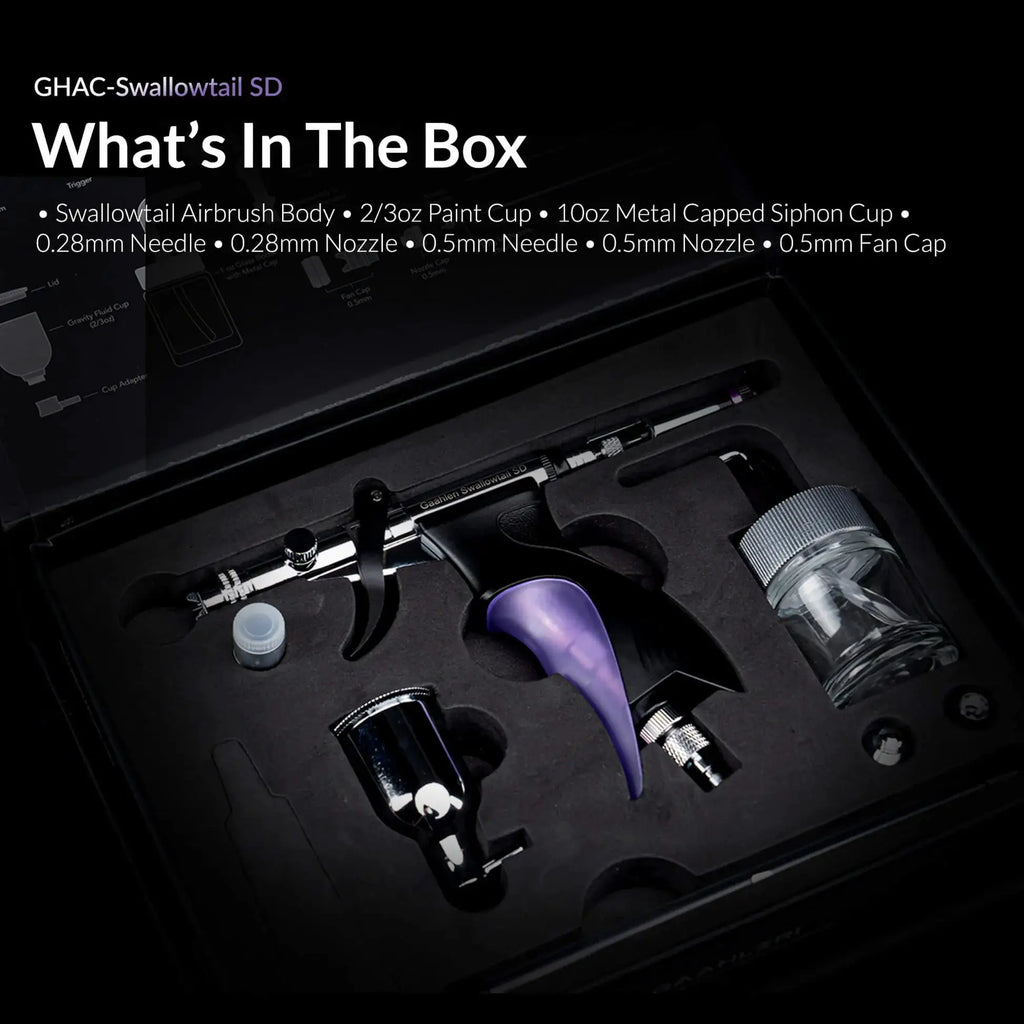

What’s in the Box

• Swallowtail airbrush body
• 2/3 oz paint cup
• 10 oz metal capped siphon cup
• 0.28mm needle and nozzle
• 0.5mm needle and nozzle
• 0.5mm fan cap
